Phasors and tuning
The cabinet that sets the ratio, and why an array has to be re-proofed after work.

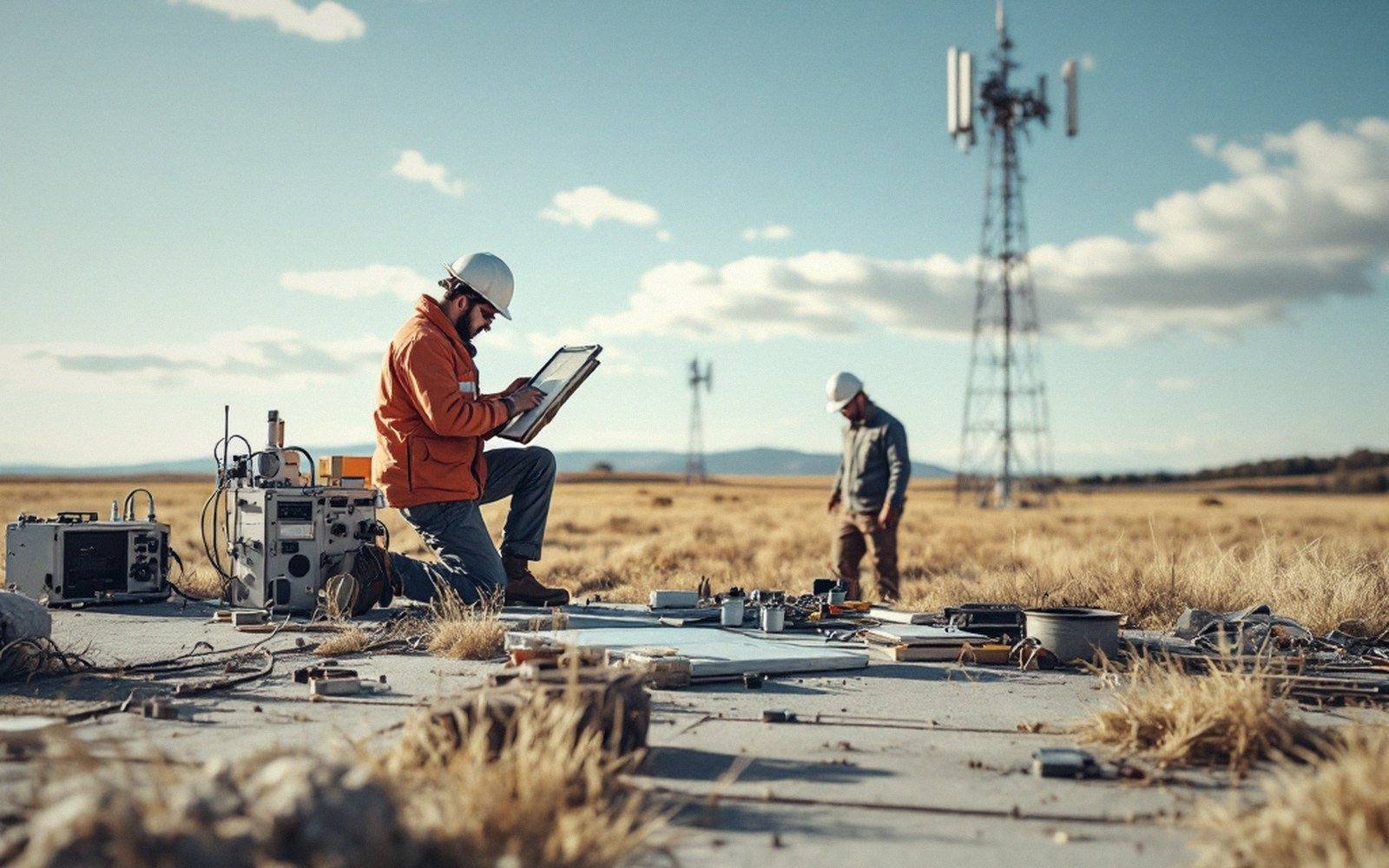

The antenna coupling network does more than distribute power — it shapes a directional pattern by controlling the exact phase and amplitude reaching each tower.
The Cabinet That Sets the Pattern
A directional AM array is not steered by rotating the antenna or switching frequencies. It is shaped in the phasing and coupling house — a rack of inductors, capacitors and transformers fed from a single transmitter. Each tower in the array receives a carefully specified fraction of the total power and, critically, a specified phase offset from the reference tower. Together, those two numbers — a phasor, in the formal sense — define how the fields from each element combine in space. Where they add, the pattern lobes. Where they cancel, the null falls. The Federal Communications Commission licenses the pattern on paper; the hardware in that cabinet is the mechanism that realises it.
Tuning the system is painstaking work. The engineer adjusts a network for each tower — base current, measured with a calibrated current meter at the base of the series-fed element — until both the ratio to the reference tower and the phase relationship match the licensed values. Phase is read from sample loop antennas near each base, compared electronically. A degree or two of phase error is enough to noticeably degrade a licensed null. A null that is supposed to protect a distant co-channel station can fill in entirely if the tuning drifts.
And it does drift. Components age. Capacitors shift value as their dielectric changes character. Mutual coupling between adjacent feedlines alters with soil moisture. A dry summer is not the same as a wet autumn for the ground that completes each antenna's circuit — and a change in that circuit impedance ripples back through the phasing network and perturbs the phase. Directional arrays were often re-checked and re-tuned at intervals as a matter of routine, since seasonal changes in the ground could pull the pattern away from its licensed values.
This is why the regulator requires a proof of performance — a full set of measured field-strength readings along prescribed radials — after any significant work on the antenna system, on the transmitter, or on the ground system. Replacing a tower's base network components. Re-sectionalizing a feedline. Digging near buried ground radials. Any of these can shift the impedance environment enough to move the pattern. The proof is not bureaucratic caution; it is the only way to confirm that what the licence describes is what the array is actually doing.
The cabinet that sets the ratio is the array's brain. Keeping it tuned — and proving it stays tuned — is an obligation that follows the station throughout its operating life.
